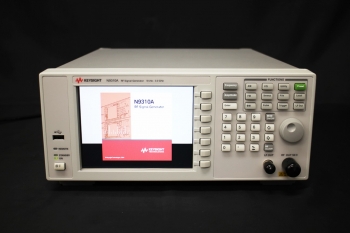

Keysight N9310A 9 kHz to 3.0 GHz RF Signal Generator
SOLD OUT sold |
gen514 |
|
|

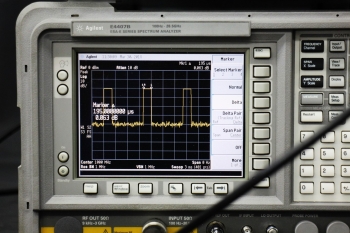

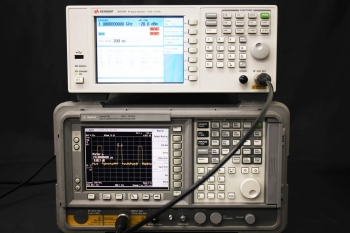

Pulse Mod 1GHz -20dBm width 200microseconds |
Pulse Mod 1GHz -20dBm width 200microseconds |

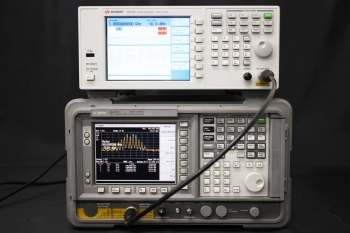

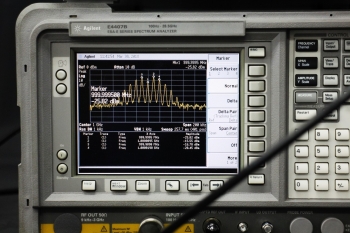

Freq Mod 1GHz -10dBm Devi20kHz Rate10kHz |
Freq Mod 1GHz -10dBm Devi20kHz Rate10kHz |
|
|
Include Keysight Warranty to 19Jun2018
Frequency
Range 9 kHz to 3.0 GHz
Resolution 0.1 Hz
Switching speed < 10 ms
Timebase reference output
Frequency 10 MHz
Amplitude > 0.35 Vrms level into 50 Ω
Connector BNC female
Output Power –127 to +13 dBm +20 dBm settable Resolution 0.1 dB
Accuracy < ± 1 dB Fc ≥ 100 kHz, –120 ≤ Level ≤ +13 dBm
Modulation
Amplitude modulation (Fc ≥ 100 kHz)
Operating modes Internal, external AC Range 0 to 100%
Frequency modulation (Fc ≥ 100 kHz) Operating modes Internal, external AC Frequency deviation 20 Hz to 100 kHz
Phase modulation (Fc ≥ 100 kHz) Operating modes Internal Phase deviation 0 to 10 rad Rate ≤ 10 kHz 0 to 5 rad 10 kHz < rate ≤ 20 kHz
Pulse modulation Operating modes Internal, external On/Off ratio ≥ 40 dB
Option
001:Analog I/Q Input Capability
PFR:Placeholder |
| Power Code |
 |
|
)
)
)
)
)
)
)
)
