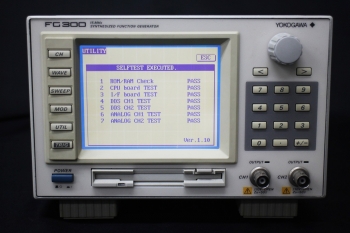

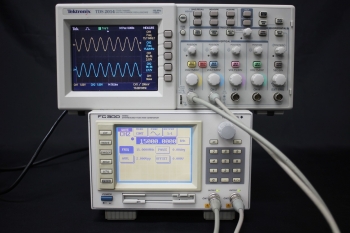

YOKOGAWA FG320 15MHz 2ch Function Generator
SOLD OUT sold |
gen535 |
|
|
|
|
|
1uHz-15MHz (Sin,Square)
1uHz-200KHz(Triangle,Pulse)
1uHz-200KHz(Arbitary)
res1uHz 9digits acc20ppm
Output:10V(20Vp-p) acc0.8% Responce1dB(10MHz) offset+-10V(step1mV) BNC(f) 50ohms
ATT:1/1 1/10 1/100
Dist <-55dBc(100KHz) <0.3% Sprious<-55dBc
Trr<30ns(Square) <100ns(Pulse)
Duty:0-100% Synmetry(0-100%(Triangle)
Phase-10,000deg-+10,000deg(res0.01deg) Sweep:Log/Lin/Step/Pattern
SweepTime:1ms-10,000s 5digits
Modulation:AM,DSB-AM,FM,PM,PWM waveform(Sin/Triangle/Pulse,Arbi) 1mHz-50KHz
Sequence:1-256step
Arbitary12bit 8192points
Trigger,Gate
INT/EXT/manual/GP-IB
INT:1mHz-50KHz
Burst:1-65535
Memory10 FDD GP-IB
AC90-264V,125VA,
Dimention:132H213W350D
Weight:5Kg
Maker price JPY850,000 |
| J-Manual*2,FD*1 |
 |
|
)
)
)
)
)
