KIKUSUI PLZ1004W+PLZ2004WB 3000W Elecronic Load
SOLD OUT sold |
pow488 |
|
|

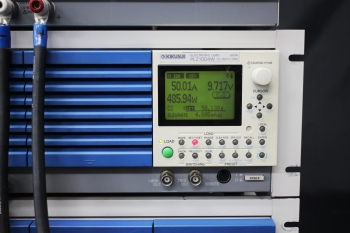

Load 50A 9.7V 485W |
Load 50A 9.7V 485W |

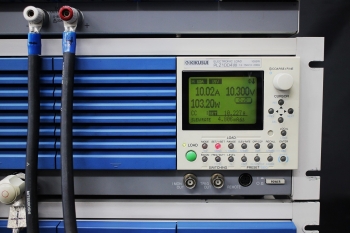

Load 10A 10.3V 103W |
Load 10A 10.3V 103W |
PLZ1004W
Operating Voltage:1.5V-150V
Current:200A
Power:1000W
Mode CC CR CV CW CC+CV CR+CV
Switching 1.0Hz-20.0KHz Duty 5.0%-95.0% Level 0-100%
Sequence 1024step 25us-1000H
Set memory 100 Preset 3
Protection 過電流保護(OCP)、過電力保護(OPP)、過電圧保護(OVP)、低電圧保護（UVP）、過熱保護(OHP)、および逆接続検出（REV)
Communication Function:
GPIB/RS232C/USB
PLZ2004WB
2000W booster unit for model PLZ1004W dc electronic load (E-Load)
Operating Voltage:1.5V-150V
Current:400A
Power:2000W
Using 1 PLZ1004W as a master unit
It cannot be connected and used with any other model
Maker price:JPY990,000 |
| Connect cable,Power code |
 |
|
)
)
)
)
)
)
